Take Home Points

1. Speckle tracking echocardiography is not ready for prime time in the ED. It was not very sensitive or specific for the diagnosis of acute coronary syndrome in this small retrospective study.

2. More work needs to be done to see how this modality could help with the diagnosis of acute coronary syndrome and other cardiac pathology in the acute care setting.

Background

If you haven’t heard of speckle tracking on echocardiography – it is a pretty cool idea (see this brief video if you have no idea what this is). Speckle tracking is a technology that allows for an accurate quantification of the motion of the myocardium throughout the cardiac cycle. It finds identifiable areas of the myocardium so it can follow the motion over time, tracing the magnitude of “myocardial deformation”. It can therefore be used to detect many pathologies. Among the uses is identifying regional wall motion abnormalities caused by coronary ischemia. At face value, this seems like a great solution to a problem that we have. Unfortunately, electrocardiograms (ECGs) don’t identify all cases of coronary occlusion. Also – just eyeballing for wall motion abnormalities isn’t that accurate either. So maybe this Speckle Tracking echocardiography (STE) would be of use as a point-of-care study to help identify patients that need more emergent revascularization when acute coronary syndrome is suspected. Granted, many people don’t have this capability on their machines, but the technology is available on many point of care machines now. There has been very little data on this to date, so this study breaks the ice and explores how this fascinating technology can be used in this emergency department population.

Questions

How is speckle tracking technology being used in the ED?

What are the test characteristics of point-of-care speckle tracking echocardiography compared to comprehensive echo or final diagnosis of acute coronary syndrome?

Population

Academic Level 1 Trauma center

Adults who presented to the emergency department with suspected acute coronary syndrome between July 2014 and May 2016

Inclusion:

  • Adults
  • Suspected acute coronary syndrome + Received point of care speckle tracking echo in the ED

Exclusion:

  • Ultrasound was not correctly labeled
  • Ultrasound did not transfer to PACS
  • Interpretation of POCUS not present in electronic health record
  • Did not include 4 standard views + 2 adequate speckle tracking windows (needed at least apical four chamber and parasternal short axis views)

Design

Retrospective chart review

Queried ultrasound database

Collected information on laboratory results, bedside echocardiogram interpretation, medical decision making, admission or discharge diagnosis, cardiac treatments, comprehensive echocardiogram interpretation, cardiac catheterization results, follow up, readmissions, deaths at 30 days.

From ultrasound database, they collected information on indication for the exam, the operator, the attending and the numbers and types of views obtained.

To calculate accuracy, they compared to two criterion standards:

A. Comprehensive echocardiogram with wall motion abnormalities

B. Diagnosis of Acute Coronary Syndrome – elevated troponins OR unstable angina OR percutaneous coronary intervention OR stenosis >70% on catheterization

Who did the ultrasounds?

Emergency department residents, ultrasound fellows, ultrasound fellowship-trained faculty, faculty members, and emergency department sonographers

The Scan

Phased array transducer

*Requires software package with speckle tracking

Phased

Here’s how they did it:

  1. Based on the patient’s ECG tracing, the ultrasound system identifies mid-systole and the provider manually traces the endocardial border.
  2. The computer then assigns speckle regions and calculates systolic strain for 16–18 segments of LV, depending on the manufacturer’s software.
  3. This result is displayed on a linear graph as percent change over time (x-axis is time and y-axis is percent strain with green hashed vertical line representing aortic valve closure) and quantifies myocardial deformation.
  4. Defined abnormal strain pattern when all of the wall segments did not form a nearly single uniform line

Normal Apical Four Chamber with Speckle TrackingA4C Speckle Normal

Abnormal Apical Four Chamber with Speckle TrackingA4C Speckle Abnormal

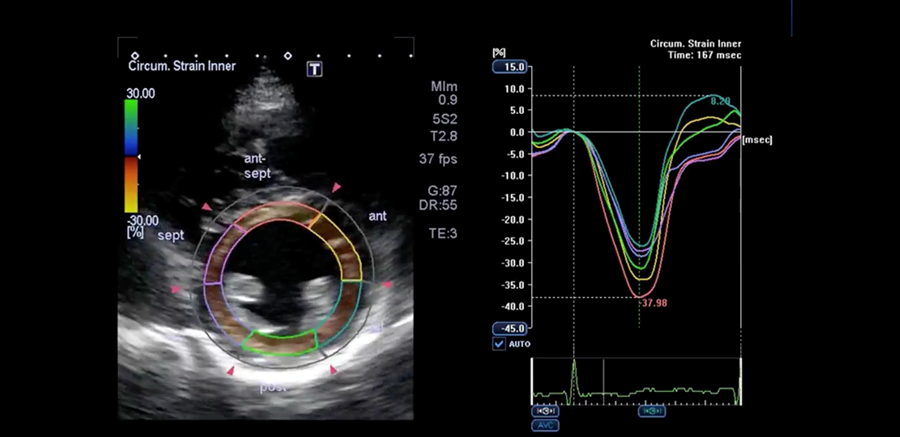

Normal Parasternal Short Axis with Speckle TrackingPSAX Speckle Normal

Abnormal Parasternal Short Axis with Speckle TrackingPSAX Speckle Abnormal

Images provided courtesy of Dr. Lindsay Reardon

Here is a nice article on How to Perform Speckle Tracking Echocardiography



5minsono

5 Min Sono – Cardiac Function

thePOCUSAtlas

The Image Atlas – Echocardiography

Results

187 studies reviewed, 104 excluded for only single speckle tracking window, 7 excluded for missing parasternal or apical window specifically (needed both of those).

N = 75 echos with “complete” speckle tracking

Patients with complete exams (n = 75)

  • 72% male
  • Mean age 52.5 years old
  • 77% of patients admitted
  • 21.3% (16/75) positive
  • Comprehensive echo performed on 53%
  • Cardiac catheterization in 15%
  • 39% had discharge diagnosis of acute coronary syndrome

Indications for Echo

  • Chest pain 56%
  • Other abnormal clinical finding 27%
  • Shortness of breath 13%
  • Abnormal ECG 7%
  • Tachycardia/palpitations 4%
  • Shock 3%
  • Altered mental status, Congestive Heart failure, Syncope 1% each

Primary Outcome

Accuracy of POC STE Compared to Comprehensive STE

Sensitivity 35% (15-61%)

Specificity 70% (47-86%)

Accuracy of POC STE Compared to Diagnosis of ACS

Sensitivity 29% (17-46%)

Specificity 88% (72-96%)

Additional Findings

The Echos (n = 187)

  • 40% “complete” (75/112). This means having the four cardiac views and the two mandatory speckle views
  • Experienced providers (in fellowship, finished fellowship, or ED sonographer) performed 60% of the complete exams
  • 21% by ultrasound fellow, 16% by ED ultrasound technician, 13% residents, 3% attending
  • 47% had no operator recorded

72% of the ED performed STE discussed the echo results in their medical decision making (88% of the positive studies)

Specificity increased to 80% when compared to comprehensive echo with the more experienced operators

Limitations

Since this is retrospective, we have no idea how many patients were not included for any number of reasons – not getting an echo, not getting speckle tracking, not having all of the views, etc. Therefore, there is a lot of potential for bias in the population included in the study.

Criterion standards. Two standards were used here. While we would prefer a single primary outcome, both of these comparisons are useful. There was no time recorded between the POC STE and the comprehensive STE so that comparison is questionable. However, what we really care about is identifying those with occlusive myocardial infarctions who would benefit from reperfusion. In this case, only 16% of the complete studies had a catheterization. The remainder of the ACS cases must have been based on troponin or clinical diagnosis. With 60% of the speckle tracking studies excluded because they were incomplete it certainly makes the feasibility questionable.The authors mention that current literature advocates for obtaining 6 STE views (apical 4,3, and 2 chamber as well as parasternal short axis at three levels), which no body did in this study. It’s likely that all of these views are not necessary in the emergency department but adding more views would likely reduce the feasibility even more. Furthermore, we don’t know how many exams were performed in which the speckle tracking feature could have been indicated but was not able to be used.

This is preliminary. There is still a lot to learn about how to use speckle tracking. Obviously, we are limited in a retrospective study, but it would have been great to compare to some other standard of care for these patients. Is accuracy improved compared to standard POC echo? Did it improve compared to treatment without any ultrasound? Could it be one data point used in determining if early catheterization is needed?

Patients in this study were those with fairly high pre-test probability for ACS. 77% were admitted. 39% had final diagnosis of ACS. Unknown how well this test would perform in lower risk group.

Discussion

Authors mention that using a set number for abnormal strain (such as the 18.5% lower limit set by American Society of Echocardiography and European Association of Echocardiography) might increase accuracy and decrease variability among sonographers.

Maybe only parasternal short axis views could be used in the ED as a more sensitive screen. That way people would not need a perfect apical four chamber. This might help feasibility and sensitivity. On the other hand, there is some literature that the longitudinal strain in the apical 4 or 5 chamber may be superior to the radial and circumferential strain seen in parasternal short axis.

There are many other pathologies that might benefit from speckle strain. So even if it doesn’t pan out for ACS – don’t count it out yet. Might help for pulmonary embolism, heart failure, sepsis and other pathologies encountered in the acute care setting.

Take Home Points

1. Speckle tracking echocardiography is not ready for prime time in the ED. It was not very sensitive or specific for the diagnosis of acute coronary syndrome in this small retrospective study.

2. More work needs to be done to see how this modality could help with the diagnosis of acute coronary syndrome and other cardiac pathology in the acute care setting.
