On every shift, diagnosing and risk stratifying patients with acute coronary syndromes (ACS) is a challenge. Whereas bedside ultrasound can help rule out diagnoses like pneumothorax, pericardial tamponade, pneumonia, and pleural effusions, there are patients with regional wall motion abnormalities on echocardiograpgy (representing areas of imminent ischemic death) who can benefit from early invasive intervention (angiography and coronary stenting).
The ACA/AHA guidelines for managing UA/NSTEMI recommend (Class 1A recommendation) early invasive strategies for those patients with elevated risk for clinical events—one of those risk factors being abnormal findings on echocardiography.(3) Echocardiography to assess for regional wall motion abnormalities is recommended in patients with a clinical history and physical exam concerning for acute coronary occlusion, in whom EKG is equivocal and biomarkers negative. It has been shown that global and regional wall motion abnormalities can be accurately identified on bedside echocardiogram by emergency physicians in the ED.(5) These findings may help avoid delay in getting patients to the cath lab and thus save myocardium.
The goal on bedside echo is to identify an area of affected myocardium in the distribution of coronary blood flow that is occluded. The EKG below demonstrates the typical coronary artery distributions:
– Blue = lateral wall = circumflex artery
– Yellow = inferior wall = right coronary artery
– Red = anterior wall = left anterior descending artery

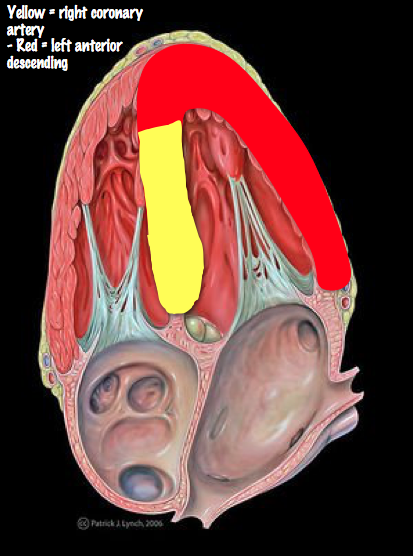

Echocardiographers divide up the left ventricle into 17 different segments. Emergency physicians typically differentiate between only three segments. The EKG distributions above correspond to areas of affected myocardium (see diagrams alongside echo clips). These are characterized as normal, hypokinetic, and akinetic.
For a further detail viewing of these segments relating to vascular territories, please see the following image:
See this outstanding vodcast by Felipe Teran MD and Lara Vanyo MD.
55 y/o M with h/o HTN and NIDDM presents with 2 hours of exertional chest pain. He appears uncomfortable but is hemodynamically stable. The EKG shows symmetrical T-wave peaking in the inferior leads but nothing meeting STEMI criteria. The first troponin is negative. On his bedside echo (clips below), he has an inferior septal area of hypokinesis that is consistent with an RCA lesion. The Cardiology consultant is called to the ED, reviews the images, and the patient is subsequently taken to the cath lab where a 90% unstable RCA thrombus is found.
