emDOCs Podcast – Episode 84: Capnography

Today on the emDOCs cast with Brit Long, MD (@long_brit), we discuss capnography.

Episode 84: Capnography



  • Capnography is the noninvasive measurement of carbon dioxide partial pressure.
  • Displayed as colorimetric/qualitative, quantitative and waveform
  • Normal range for EtCO2 35-45 mm Hg

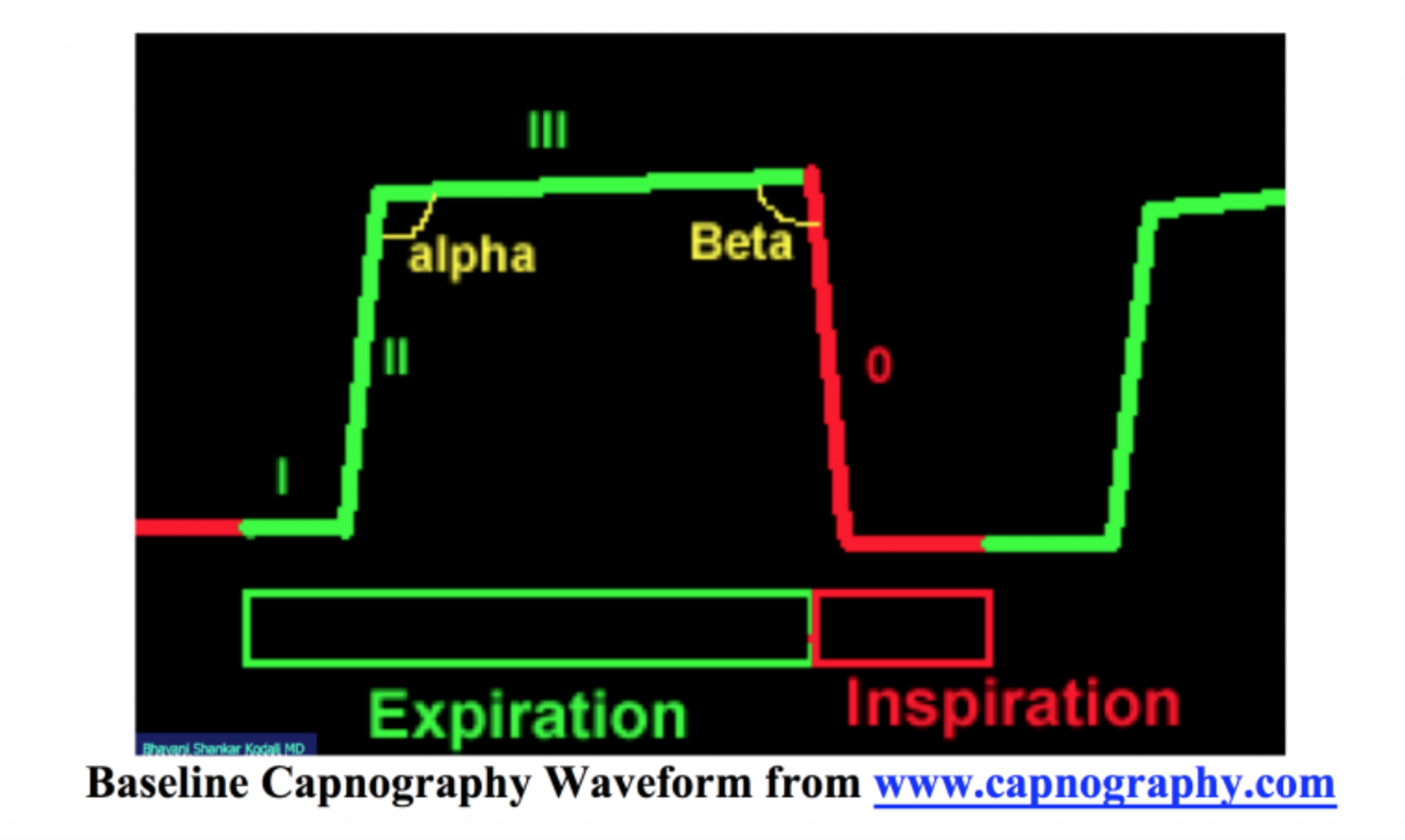

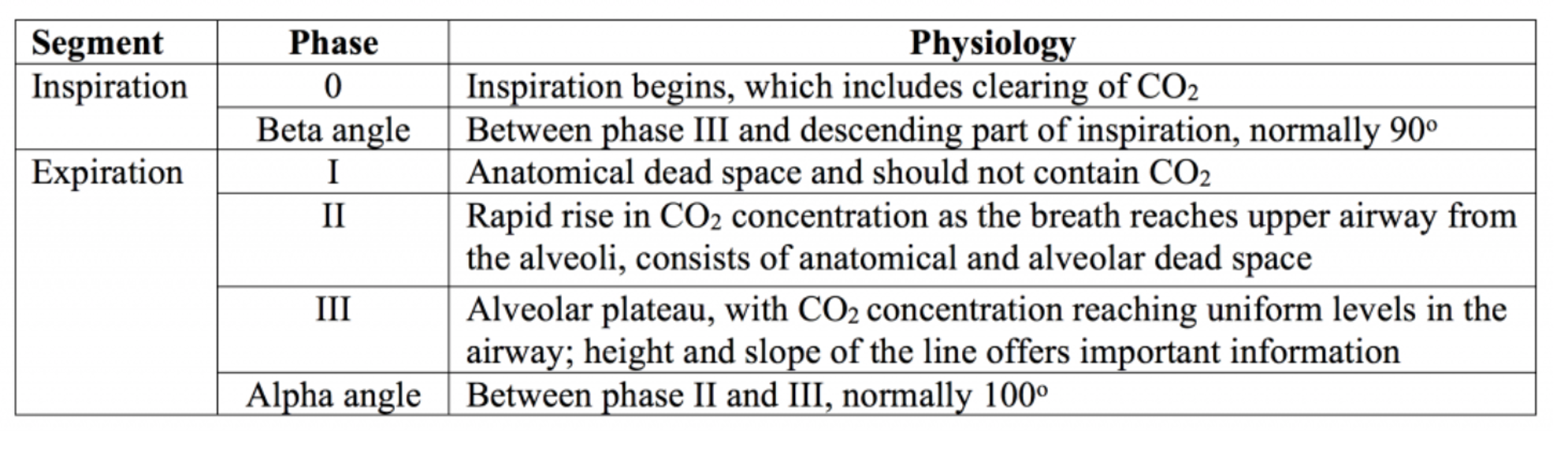

  • Waveform has several different phases:
    • Phase 0 – inspiration – clearing of CO2
    • Phase I – expiration – anatomical dead space, should not contains CO2
    • Phase II – expiration – rapid rise in CO2 concentration, as breath reaches upper airway from the alveoli
    • Phase III – expiration – CO2 concentration reaches uniform levels in the airway,  height and slope of the line offer important information


  • Three aspects of capnography:
    • EtCO2 maximum number/plateau
    • Shape of the capnogram
    • Difference/gradient between EtCO2 and arterial CO2 pressure
  • Capnography reading affected by:
    • CO2 production & transport, ventilation, and vent-perf ratio changes
    • Vent settings/malfunctions,  tubing obstruction/disconnection/leaks  & monitor malfunction
  • ETCO2 correlates with blood pressure, lactate & base excess in the critically ill.
  • Mortality rate ↑ as EtCO2 levels ↓


Common uses:

  • Confirmation of ETT placement
    • Sensitivity ~ 100% for placement in trachea
    • More reliable than fogging of ETT, chest wall movement, breath sounds
    • Monitoring ETT during transport – quickly detect displacement
  • Cardiac arrest
    • EtCO2 assesses chest compression efficacy
    • The level of EtCO2 = cardiopulmonary blood flow
    • ACLS guidelines: quantitative waveform to monitor compressions & ROSC
    • Level >20 mmHg → higher chance of ROSC
    • Levels <10 mmHg → lower chance of survival
    • Gradual↓ in EtCO2 = compressions not optimal or other complications (hemorrhage, pneumothorax, tamponade, myocardial infarction)
    • Sudden ↑ ≥10 mm Hg is specific for ROSC
    • Does not determine cause of arrest
    • PQRST Mnemonic for capnography in cardiac arrest
      • Position of tube – more reliable than other options
      • Quality of compressions – valuable feedback in real time
      • ROSC – sudden ↑ in value suggests ROSC
      • Strategy for further treatment – trends + other diagnostics help decide on diagnosis & treatment (vasopressors, fluids, thrombolytics – trying to optimize perfusion)
      • Termination of resuscitation – <10 mmHg associated with death
  • Procedural sedation
    • Assess ventilation at the bedside
    • Detects hypoventilation faster than pulse oximetry
    • Respiratory depression manifests as↑EtCO2
    • ACEP recommends capnography as adjunct to pulse oximetry


Other indications:

EtCO2 should only be used as an adjunct at the bedside in these conditions.

  • Trauma
    • Associated with severity of injury and need for blood transfusion
    • ↓ EtCO2 = ↑ likelihood of needing OR
    • EtCO2 < 25 mm Hg =↓ cardiac output, ↓ BP  & ↑ mortality
  • Fluid responsiveness
    • 2 mmHg ↑ EtCO2 with straight leg raise = patient will be fluid responsive
  • DKA
  • Sepsis
    • EtCO2 < 31 associated with high mortality
  • PE
    • Increased dead space = ↓ EtCO2
    • EtCO2 > 3236 + low probability Wells score – may rule out PE
    • Another tool  with pre-test probability and D-dimer
    • More studies needed
  • Obstructive airway disease

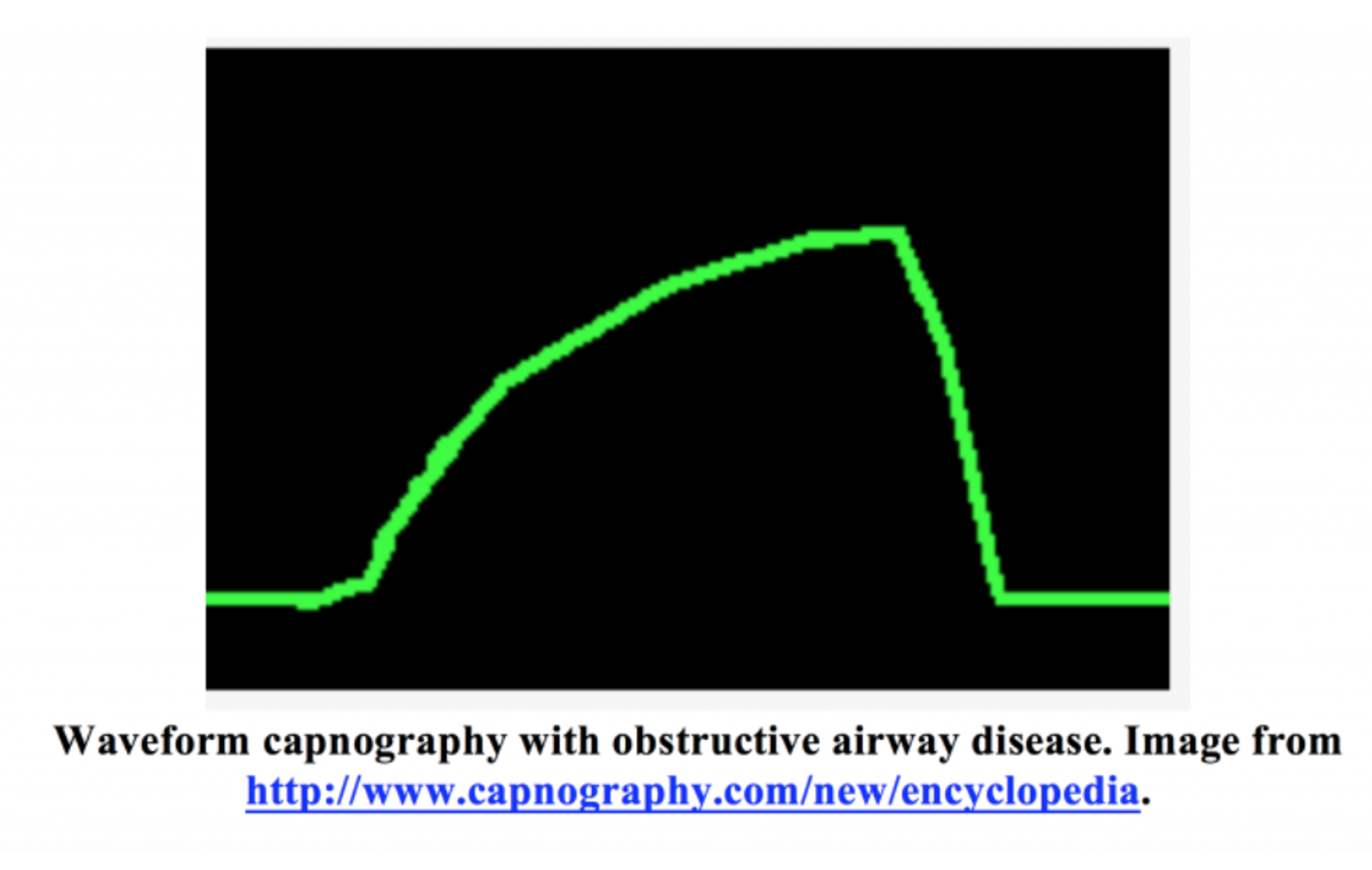

    • Bronchospasm – steep phase III (shark fin capnogram)
    • Early on ↓ EtCO2 – breathing off extra CO2
    • Later ↑EtCO2 – poor ventilation, severe exacerbation
    • Monitor treatment – shark fin disappears with improvement of bronchospasm from nebulizer/steroids
  • Seizure
    • Useful for monitoring of respiratory status


  • Works well for a specific underlying issue – mixed pathophysiology makes interpretation challenging.
  • In cardiac arrest, EtCO2 is dependent on compressions AND the underlying cause.
  • Other organ system involvement & hypotension/low perfusion affect EtCO2.
  • False positive CO2 detection can occur in esophageal intubations if the patient ingested carbonated beverages.
  • Acidic solution exposure, such as stomach content fluid or vinegar, can result in qualitative color change.



  • Capnography is an overall assessment of the path of CO2 through the entire body.
  • Capnography picks up hypoventilation faster than pulse oximetry.
  • ETCO2 correlates with blood pressure, lactate, and base excess in critically ill patients.
  • Capnography has several novel uses in other disease states commonly seen in the ED such as trauma, DKA, sepsis and obstructive lung disease.
